S-P-0030212

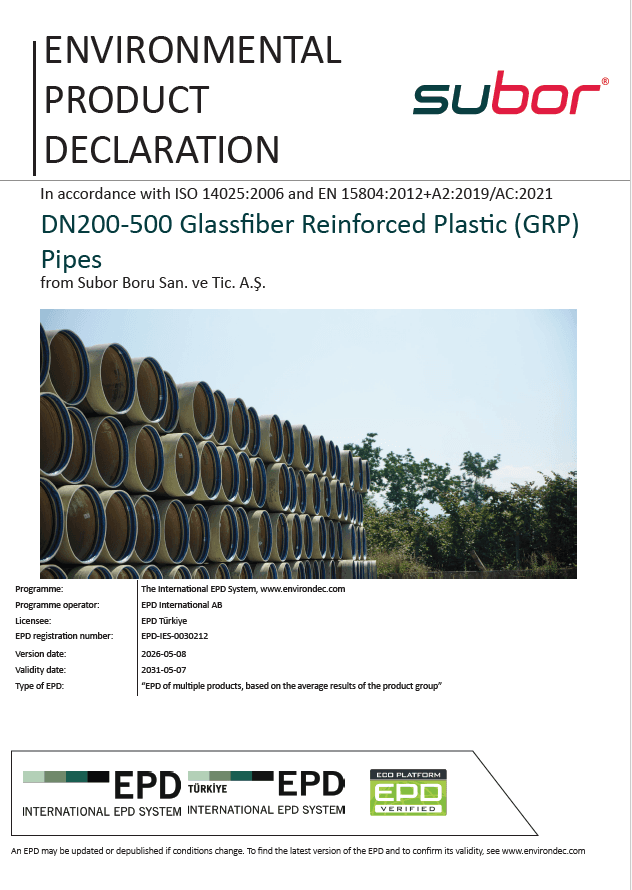

SuborDN200-500 Glassfiber Reinforced Plastic (GRP) Pipes
The study covers SUBOR Glassfiber Reinforced Plastic, GRP, pipes in the DN200 to DN500 diameter category. The declared category represents the production-weighted average of DN200, DN300, DN400 and DN500 pipes produced during the reference year. For this diameter category, the average raw material recipe and energy consumption were calculated based on annual production data. Accordingly, the results and compositions presented in this EPD reflect the weighted average for the specified diameter category. SUBOR GRP pipes are glassfiber reinforced thermosetting plastic composite pipes manufactured using Continuous Filament Winding technology. The pipe wall structure is mainly composed of glass fiber reinforcement, unsaturated polyester resin and silica sand/aggregate filler. Glass fiber reinforcement contributes to pressure resistance, rigidity and axial strength, while the polyester resin binds the composite structure through thermoset polymerization. Silica sand/aggregate filler is incorporated in the core structure to contribute to pipe stiffness. The broader SUBOR GRP pipe product family covers nominal diameters from DN200 to DN4000 and pressure ratings from PN1 to PN40 bar. Standard stiffness classes are SN2500, SN5000 and SN10000 N/m², while higher project-specific stiffness classes may be designed for special applications such as jacking pipes. These values describe the overall SUBOR GRP pipe product portfolio and shall not be interpreted as a DN-by-DN pressure or stiffness matrix for each EPD diameter category. The actual DN, PN and SN combinations are project/orderspecific and are reflected in the annual production data used for the weighted-average calculation. Higher project-specific stiffness classes may be designed where required, particularly for special applications such as jacking pipes. Standard pipe lengths are 6 m and 12 m, while special lengths up to 15 m may be manufactured upon request. The pipes are typically connected by coupling systems with elastomeric gaskets; the final joint type depends on the pressure class, installation method and project requirements. As this EPD declares a production-weighted average within the DN200 to DN500 category, it does not represent one single pipe diameter, pressure class or stiffness class. The applicable PN and SN combinations are project/ order-specific and are represented in the annual production data used for the weighted-average calculation of this diameter category. SUBOR GRP pipes are used in the following applications, subject to project-specific design requirements and compatibility with the conveyed fluid:
• Drinking water transmission lines and distribution networks
• Irrigation transmission and distribution lines
• Wastewater transfer lines, treatment plant pipelines and sewer lines
• Stormwater lines
• Raw water intake, discharge and cooling water lines of power plants
• Transmission and penstock lines of hydroelectric power plants
• Industrial pipeline systems, including desalination, chemical process and firefighting systems
• Renovation of existing pipelines by slip-lining
• Jacking pipes enabling trenchless installation, where applicable
• Use of GRP pipe sections/components in tank and silo production, where applicable
*Customized products are also available upon request. www.subor.com.tr/en/pipes
CPC: 53251
ISO 14025:2006 and EN 15804:2012+A2:2019/AC:2021
Registration & Validity
COMPANY INFORMATION
Subor
SUBOR, founded in 1996 with the purpose of manufacturing and trading GRP (Glass Fiber Reinforced Plastic) pipes using the Advanced Continuous Filament Winding Technology worldwide, is a partnership of Yapı Merkezi Holding and Amiantit Group of Companies.
Having the privilege of being the first technological facility in Turkey in the field of GRP pipe production using its own R&D and developed technology, SUBOR offers solutions for different infrastructure applications for over 25 years with its wide variety of products and service portfolio, ranging from circular pipes to non-circular pipes, from jacking pipes to biaxial pipes.
Contact
Subor Boru San. ve Tic. A.Ş Acıbadem Mahallesi Sokullu Sk. No:12 34718 Kadıköy-İstanbul/TURKEY
https://www.subor.com.tr
See NowSUBOR has an annual production capacity of 1000 km GRP pipes today with its 4 production lines, 3 at Sakarya Plant and 1 at Şanlıurfa Plant. Depending on the project conditions, SUBOR is capable to provide optimum customized solutions with its fully integrated quality approach to meet the engineering requirements, in compliance with the world’s most fundamental and acknowledged industry standards such as AWWA, ASTM, ISO, EN, DIN and BS.
SUBOR, founded in 1996 with the purpose of manufacturing and trading GRP (Glass Fiber Reinforced Plastic) pipes using the Advanced Continuous Filament Winding Technology worldwide, is a partnership of Yapı Merkezi Holding and Amiantit Group of Companies.
Having the privilege of being the first technological facility in Turkey in the field of GRP pipe production using its own R&D and developed technology, SUBOR offers solutions for different infrastructure applications for over 25 years with its wide variety of products and service portfolio, ranging from circular pipes to non-circular pipes, from jacking pipes to biaxial pipes.
SUBOR has an annual production capacity of 1000 km GRP pipes today with its 4 production lines, 3 at Sakarya Plant and 1 at Şanlıurfa Plant. Depending on the project conditions, SUBOR is capable to provide optimum customized solutions with its fully integrated quality approach to meet the engineering requirements, in compliance with the world’s most fundamental and acknowledged industry standards such as AWWA, ASTM, ISO, EN, DIN and BS.
By manufacturing pipes in a range from 200 mm to 4000 mm diameter, and from 1 bar to 40 bar pressure and its fittings, SUBOR provides accurate solutions for a wide variety of projects such as:
• Potable water projects,
• Irrigation projects,
• Power plant projects,
• Manufacture of “jacking” pipe which allows trenchless installations,
• Wastewater and storm water projects.
