ERW Hot Formed Epoxy or Polyester Coated Pipes

S-P-04829

Borusan Boru

ERW Hot Formed Epoxy or Polyester Coated Pipes

ERW Water Pipes

Production Standards & Material Qualities

• Production Norms EN 10224, EN 10255, ISO 65, ASTM A 53, ASTM A 795, ASTM A 589, EN 10217-1/2 • Production Standard For Threading and Coupling (1/2’’-6’’) ISO 7/1, ANSI B.1.20.1, EN 10255 • Grooving (3/4’’-12’’) according to Victaulic Standard. • Medium Series Pipes can be used up to 25 bar operating pressure for water. • Material Qualities DIN 17100 St 37-2, St 44, St 52, DIN 17100 Superseeded by DIN EN 10250-1, EN 10025 S195, S235, S275, S355, ASTM Gr A, Gr B

Tests & Certificates

• Visual and Dimensional Inspection • Leak tightness testing: Hydrostatic Test, Eddy Current Test • Destructive Tests: Flattening, Bending • Mechanical Tests • Chemical Analysis • Metallographic Examination • Others as required by the standards • Ultrasonic weld seam test if applicable for gas pipes • Mill Test Certificates - Issued upon request according to EN 10204 2.1; 2.2; 3.1; 3.2 • NDT Standards: - ET (EN ISO 10893-2), ET (ASTM E309)

Fire Sprinkler Pipes

Technical Specifications

• FM approved • UL/C-UL Listed • NSF certified • Tight tolerances • Consistent wall thickness, straightness, roundness • CE, PED certified • Pressure tested • Reliable high steel quality • Galvenised or shop primer coated black, red (RAL 3000, RAL 3002, RAL 3009) or grey (RAL 7012) • Plain Ends, Grooved or Threaded & Coupled • Custom length availability

Fire Sprinkler Pipe Specifications

• ASTM A53 & ASTM A795 production standards available; Light wall, Sch7, Sch10, Sch30, Sch40 and Sch 80 • EN 10217 & EN 10255 production standards available; Light wall, light, medium, heavy series • Easy to weld & install • Saves labor, time and cost • Pressure ratings exceeding 300 psi • Compatible for use in wet, dry, preaction and deluge sprinkler systems • Black, red and grey primer coated pipes eliminate field painted • Upon a request; hot dipped galvanized coated • Plain end, roll grooved, threaded & coupled • Custom length available • Tight tolerances • Consistent roundness, straightness and wall thickness • Reliable high steel quality • Inside weld bead can be removed • Pressure tested

CPC: N/A

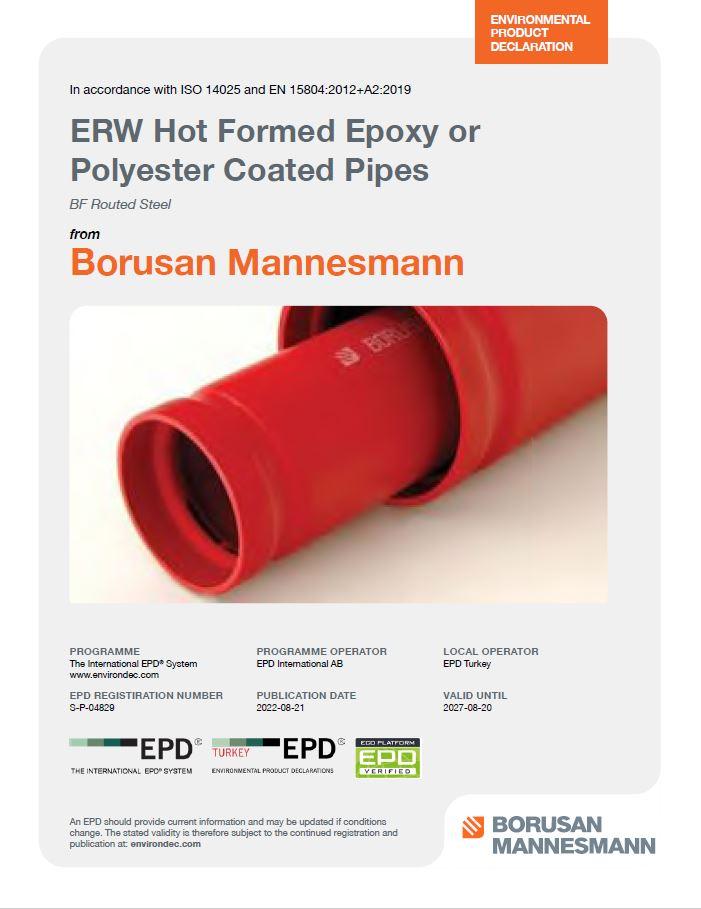

ISO 14025 and EN 15804:2012+A2:2019

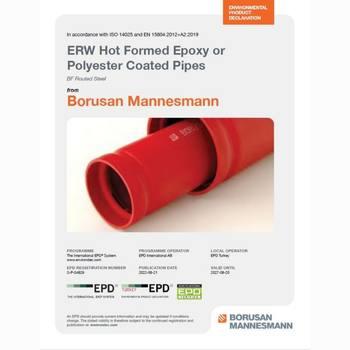

Gallery

Borusan Boru
ERW Hot Formed Epoxy or Polyester Coated Pipes
ERW Hot Formed Epoxy or Polyester Coated Pipes

Registration & Validity

#SP
REGISTRATION NUMBERS-P-04829
VALIDITY2027-08-20
CLIMATE DECLARATIONSNo
COMPANY INFORMATION

Borusan Boru

The first industrial enterprise of one of Turkey’s foremost business conglomerates, the Borusan Group, Borusan Mannesmann marked its 60th anniversary in 2018. Having operated with a global vision since its inception, the company merged its operations with Europe’s leading steel and technology firm Salzgitter Mannesmann GMBH in 1998. Today, Borusan Mannesmann continues its operations as a global brand with 2,038 employees offering more than 4,000 product varieties. Its 7 facilities across 3 continents and high sales volume have placed it on the map as a leading manufacturer in Europe and the world in the steel pipe industry.

Borusan Mannesmann brings its experience, expertise, and passion worldwide with its stateof-the-art pipes addressing all areas ranging from automotive to construction, energy to machinery production. The company continued its investments with a global perspective in accordance with market dynamics and made its first overseas investment in 2001 when it bought the facility in Vobarno and founded Borusan Mannesmann Vobarno Tubi S.p.A. The company then established Borusan Mannesmann Pipe US Inc. in 2014 to manage its Houston Baytown factory investment in the United States. Borusan Mannesmann Pipe US Inc. achieved success soon thanks to its advanced technology and innovative products and won the “Best Pipe Manufacturer” award given by one of the most prestigious publications in the United States, American Metal Market, in 2015, 2017, and 2020.

Borusan Boru
Contact

Pürtelaş Hasan Efendi, Meclis-i Mebusan Cd. No: 37, 34427 Salıpazarı/İstanbul

https://www.borusanboru.com/
See Now
Having entered among Turkey’s pioneering overseas investors with these breakthroughs, Borusan Mannesman both seeks investment opportunities in different countries and aims to boost Turkey’s competitiveness. In addition to its contributions to our country with its exports to various countries in America, Europe, Africa, and Asia, it is also a driving force for the Turkish economy with the development assurance it gives for the coming years. Having been ranked among Turkey’s top 100 industrial enterprises for 50 years, Borusan Mannesmann goes beyond merely manufacturing pipes with its thousands of products, reliable service, quality, and the trails it has blazed in Turkey and the world, and builds Turkey’s future. It delivers a sustainable society with its management policies as well as a developed country and a secure future with its large-scale investments.

The first industrial enterprise of one of Turkey’s foremost business conglomerates, the Borusan Group, Borusan Mannesmann marked its 60th anniversary in 2018. Having operated with a global vision since its inception, the company merged its operations with Europe’s leading steel and technology firm Salzgitter Mannesmann GMBH in 1998.

Today, Borusan Mannesmann continues its operations as a global brand with 2,038 employees offering more than 4,000 product varieties. Its 7 facilities across 3 continents and high sales volume have placed it on the map as a leading manufacturer in Europe and the world in the steel pipe industry.

Borusan Mannesmann brings its experience, expertise, and passion worldwide with its stateof-the-art pipes addressing all areas ranging from automotive to construction, energy to machinery production. The company continued its investments with a global perspective in accordance with market dynamics and made its first overseas investment in 2001 when it bought the facility in Vobarno and founded Borusan Mannesmann Vobarno Tubi S.p.A. The company then established Borusan Mannesmann Pipe US Inc. in 2014 to manage its Houston Baytown factory investment in the United States. Borusan Mannesmann Pipe US Inc. achieved success soon thanks to its advanced technology and innovative products and won the “Best Pipe Manufacturer” award given by one of the most prestigious publications in the United States, American Metal Market, in 2015, 2017, and 2020.

Having entered among Turkey’s pioneering overseas investors with these breakthroughs, Borusan Mannesman both seeks investment opportunities in different countries and aims to boost Turkey’s competitiveness.

In addition to its contributions to our country with its exports to various countries in America, Europe, Africa, and Asia, it is also a driving force for the Turkish economy with the development assurance it gives for the coming years. Having been ranked among Turkey’s top 100 industrial enterprises for 50 years, Borusan Mannesmann goes beyond merely manufacturing pipes with its thousands of products, reliable service, quality, and the trails it has blazed in Turkey and the world, and builds Turkey’s future. It delivers a sustainable society with its management policies as well as a developed country and a secure future with its large-scale investments.
